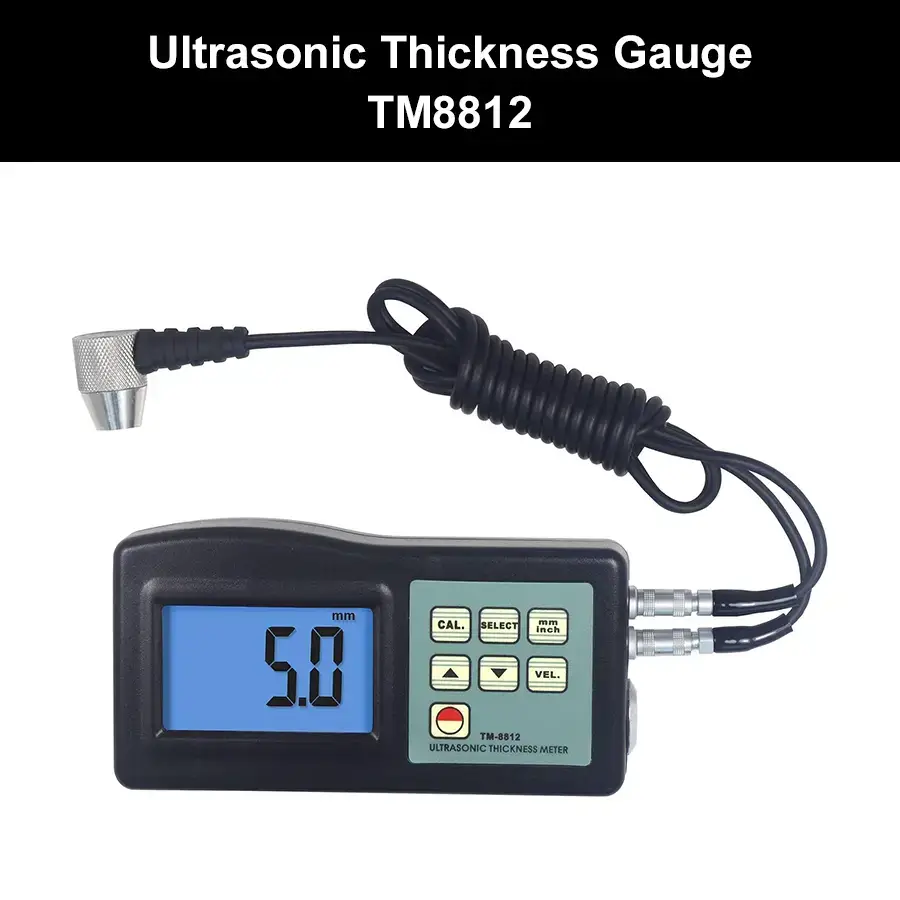

TM8811/TM8812 Digital Ultrasonic Thickness Meter
TM8811/TM8812 Digital Ultrasonic Thickness Meter - Image 2

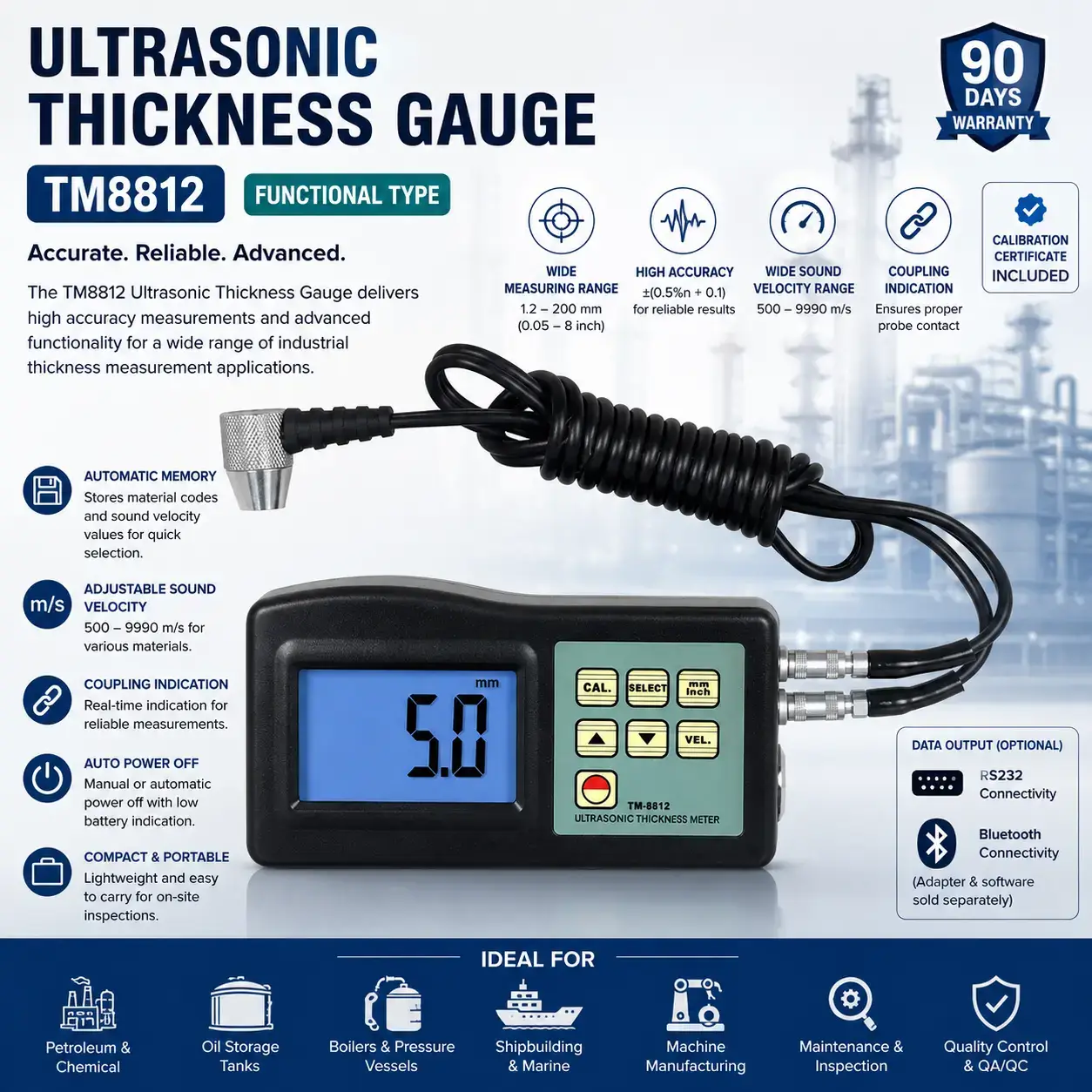

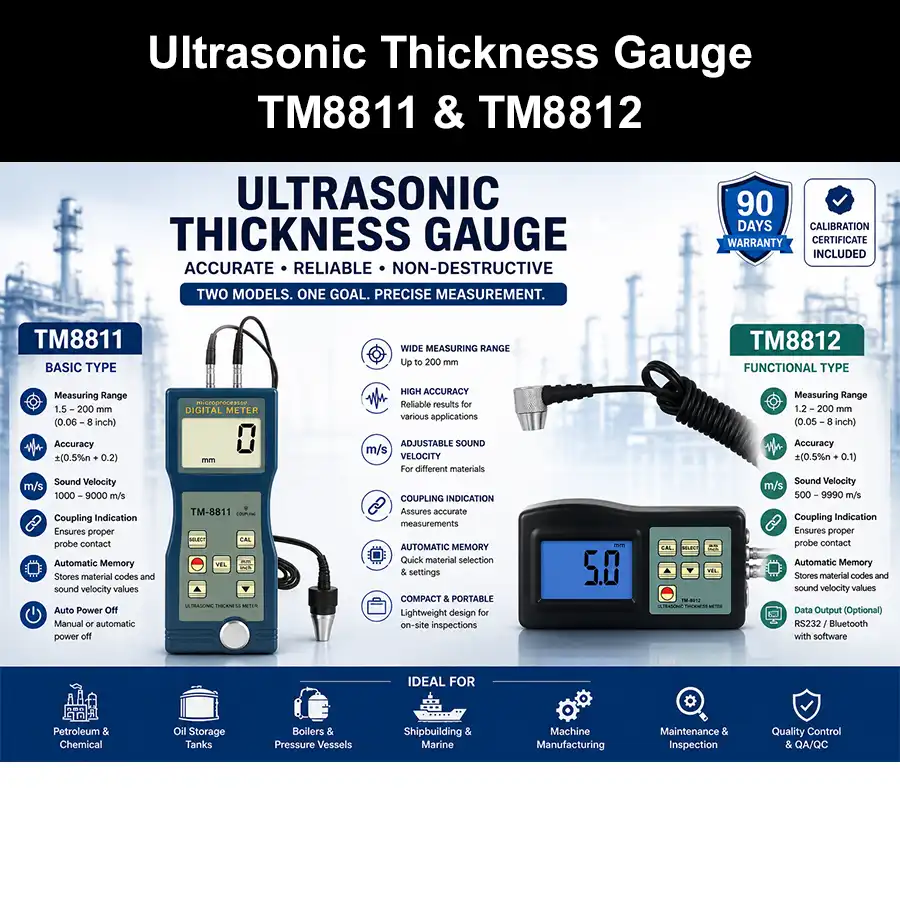

TM8811/TM8812 Digital Ultrasonic Thickness Meter

Specifications:

Model TM8811 TM8812
Measuring Range 1.5-200mm 0.06-8inch 1.2-200mm 0.05-8inch
Operating principle ULTRASONIC
Materials Measured Any hard materials, including steel, cast iron, Aluminium, Red Copper, Brass, Zinc, Quartz Glass, Polyethylene, PVC, Gray Cast Iron, Nodular Cast Iron and other materials
Sound Velocity 1000-9,000m/s 500-9,900m/s
Lower Limit Steel Pipes Φ15X2.0mm, Φ20×3.0mm determined by the transducer
Calibration Block Included
Resolution 0.1mm 0.1mm
Accuracy +/- (0.5%n+0.2) +/- (0.5%n+0.1)
RS232C Interface No Yes
Power Supply 4×1.5V AA (UM-3) Battery 4×1.5V AAA (UM-4)
Battery Indicator Lower Battery Indicator
Dimension 160x68x32mm 120x62x30mm
Weight (Not including battery) 208gram 164gram

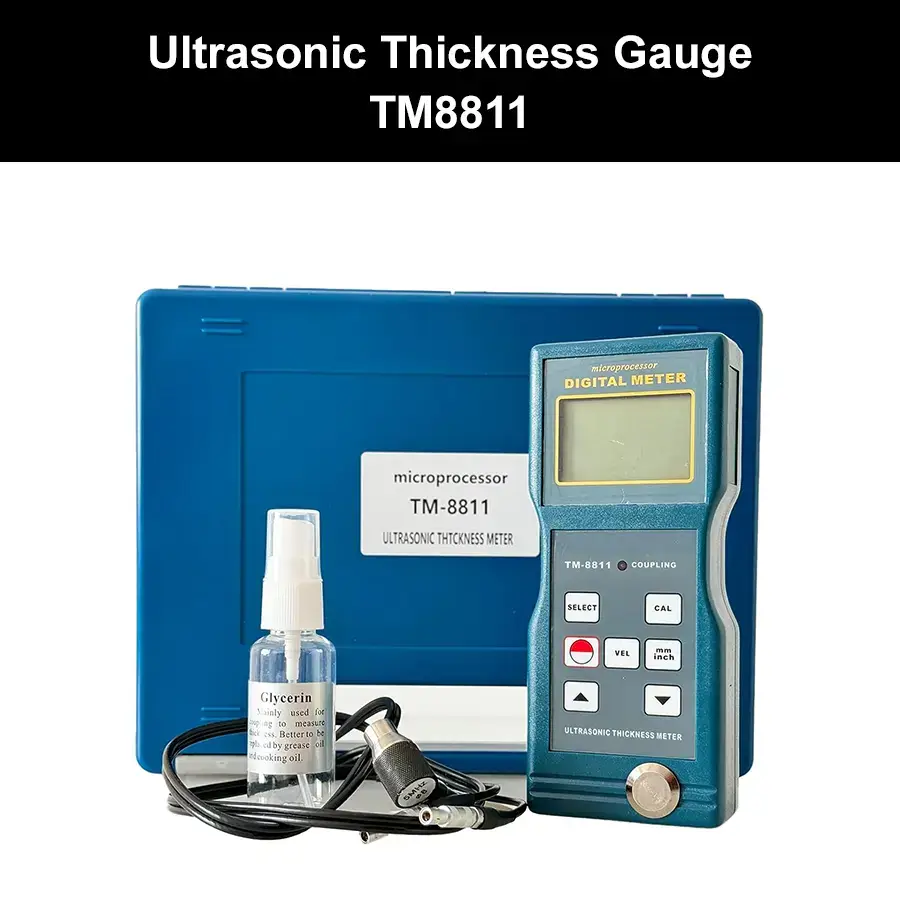

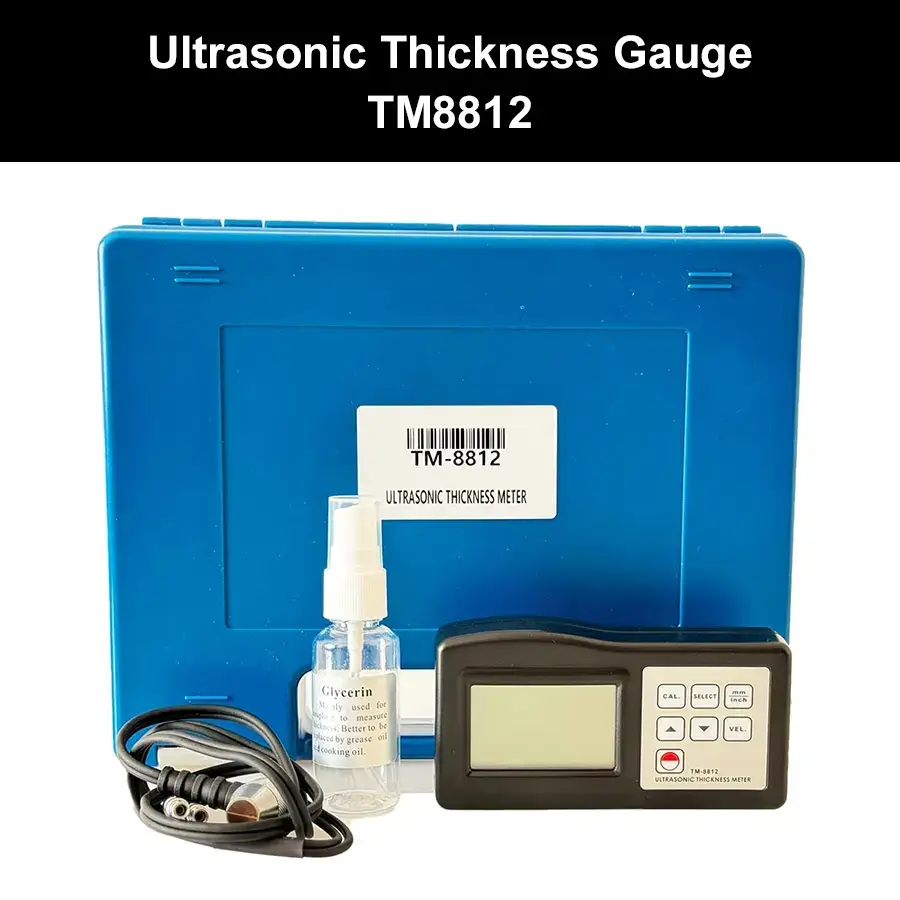

Standard Delivery Main Unit, 5mmΦ8 transducer, Couplant, Instruction Manual, Carrying Case
Optional Accessories
5MHz Φ 6mm thin material probe Measuring range (steel): 1.0mm~50.0mm
Operating temperature: 0°C to 50°C
5MHz Φ 12 high temperature probe Measuring range (steel): 4.0mm~100mm
Operating temperature: 60°C to 300°C
Cable & Software for RS232C/ USB Only available for TM8812

Stock Availability:
Ex-stock; subject to sales, pls contact us to confirm



Category:

Description

APPLICATION:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, ship building, power station, and machine manufacturing.

FEATURES

  • With high power of emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
  • Automatic memory material code and sound velocity value, convenient to use
  • Coupling symbol indication when measuring
  • Manual or automatic power off
  • TM-8812 applies USB, RS-232, Bluetooth data output
