Specifications:
| Model | VM63A |
| Vibration pickup | Piezoelectric Ceramic Accelerometer (shear-type) |
| Measurement range of acceleration | 0.1~199.9m/s² peak |
| Measurement range of velocity | 0.1~199.9mm/s rms |
| Measurement range of displacement | 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration 199.9m/s² |
| Measurement accuracy | 10%+2digits |
| Measurement frequency range of acceleration | 10Hz~1KHz(LO) 1KHz~15KHz(HI) |
| Measurement frequency range of velocity | 10Hz~1KHz(LO) |
| Measurement frequency range of displacement | 10Hz~1KHz(LO) |
| Display update cycle | 1 second |
| LCD display | 3 1/2 digits display |
| Single output | AC output 2 V peak (display full scale) Load impedance 10K Ω or more earphones can be connected |
| Power supply | 9V battery |
| Static current | ≤20 µA |
| Operating current | ≤25mA |
| Battery life | 20 hours continuous use |
| Auto power-off function | Turns off automatically after 60 seconds |
| LCD backlight function | 7 seconds |
| Operating temperature range | 0℃ to 40℃ |
| Operating hunidity range | 30~90%RH |
| Low battery indication | 6.9V 0.2V |
| Dimensions | 67mm x 30mm x 183mm |
| Weight | 147g (not including battery) |
Stock Availability:
Ex-stock

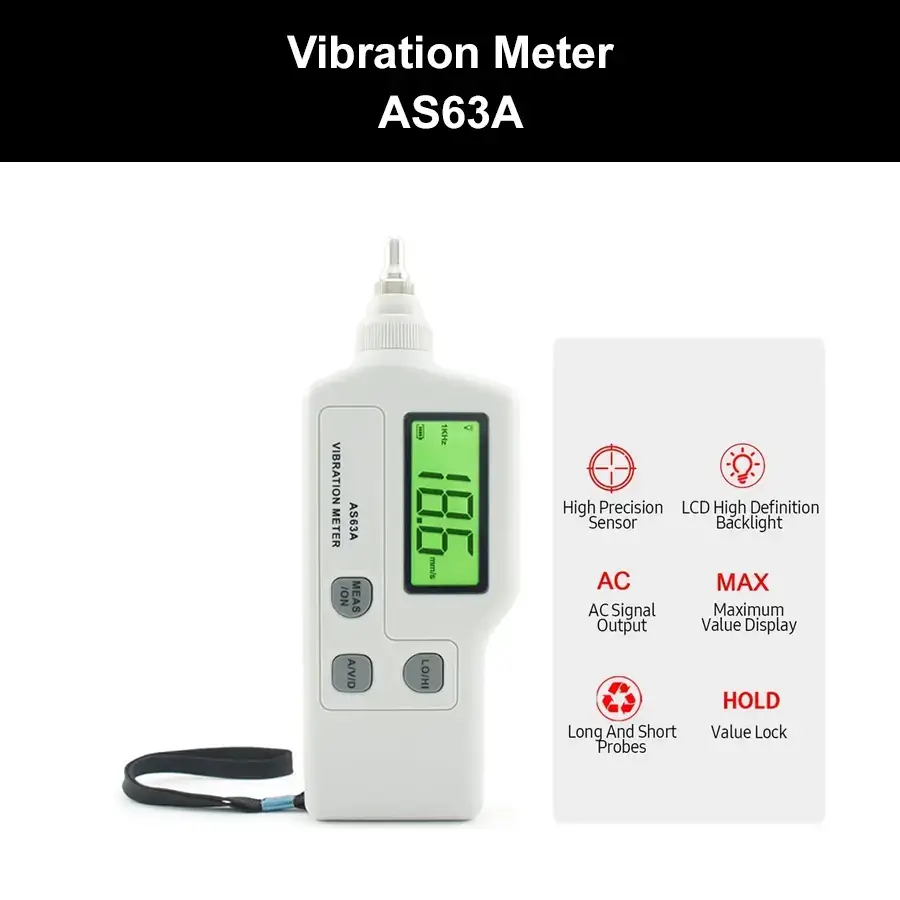

VM63A Vibration meter(also called vibration severity).
Uses Piezoelectric Acceleration Transducer to transfer the vibration signal into electrical signal, analyze the input signals and show the Acceleration, speed, shift of the vibration.
It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
